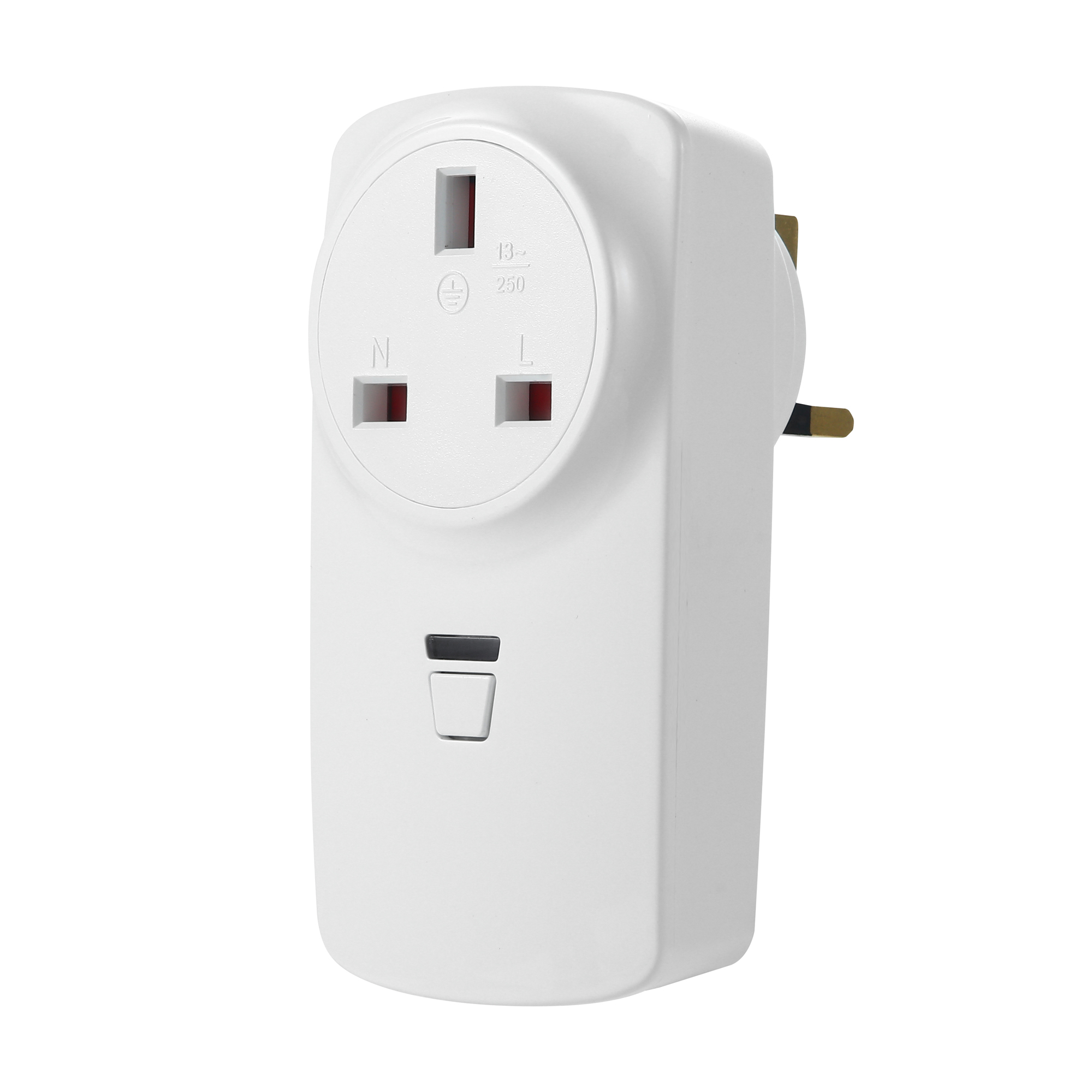

Plug-in Dimmer suitable for 200-240V  up to 150W

Plug-in Dimmer suitable for 200-240V up to 150W

Item N/O: QE-PL-150W-001B

  • Description: Electronic plug-in dimmer suitable for incandescent, halogen- and LED lamps
  • Protection: Overcurrent, overload, electronic short circuit and overheating protection
  • Error Indicator: Yes
  • Function: On/Off/Dimming
  • Rated Voltage Range: 200-240V 50Hz
  • Rated Wattage (Halo, Incandescent): 10-150W
  • Rated Wattage (LED): 2-75W
  • Dimming Profile: R, C
  • Operating Principle: Trailing Edge
  • Switch/Control: N/A
  • Certification: CE
  • Warranty: 3 Years
  • Country: All

Dimming Style:  Push Button
Anti-Flicker Adjustment:  No
Adjustable Dimming Speed:  No
Connection:  N/A
EMC certified:  Yes
Dimensions:  L 56.6 x W 108.7 x H 72mm
Weight:  91.7
Quantity Single Box:  1pcs
Quantity Inner Box:  10pcs
Quantity Outer Box:  100pcs
IP grade:  20
Ambient Temperature:  -25°C~45°C
Dimension: 0
Weight: 0
Material: Aluminum+PC
IP grade: 20
Working Temperature: -25°C~45°C
Rate Voltage: 200-240V
Frequency: 50Hz
Rated Power: 2-150W
LED Rated Power: 2-75W
Operating Principle: Trail Edge Dimmer
Control Way: One way
Load Type Dimmable LED,LED Driver,Incandescent,
Halogen, Specified Types Mix
Gang Quantity: 1
Connection: Screw terminals
Function: 0
Protection type: Over current protection
Eletronic short-circuit protection
Overload protection
Over temperature protection
EMC/LVD certified: YES
Instant On: <0.7s
Switch Cycle: 25000
